Home > Detachable Container House >

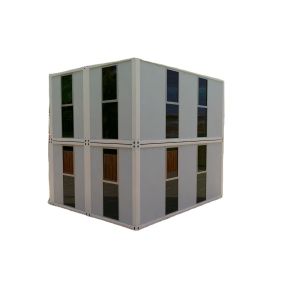

Modular Portable Prefab Homes Low Cost With Long Service Life

Product Categories

CCCC TIANJIN DREDGING (HAINAN) INDUSTRY CO.,LTD

Contact Now

Modular Portable Prefab Homes Low Cost With Long Service Life

Ask Lasest Price
Brand Name :	CCCC Prefab Housing
Model Number :	Integrated house 2.3mm
Supply Ability :	100000 Square Meter/Square Meters per Month
Price :	$1,600.00/sets 1-5 sets

Add to Cart

Product Details
Company Profile

Modular Portable Prefab Homes Low Cost With Long Service Life

Products Description

CCCC Tianjin Dredging (Hainan) Industry Co., Ltd. CONTAINER HOUSE BILL OF MATERIALS
605529902896			NAME	UNIT	QUANTITY
Main frame	Top frame	galvanized forming beam, zinc content 80g/㎡, 170 width 5633mm length	Pieces	2.00
				galvanized forming beam, zinc content 80g/㎡, 170 width 2688mm length	Pieces	2.00
				Galvanized C90*1.3mm cross brace, zinc plating content 80g/㎡	Pieces	7.00
				20201.0mm galvanized square pipe, zinc content 80g/㎡	Pieces	2.00
				W water retaining plate, zinc plating content 80g/㎡	Pieces	4.00
		Bottom frame	galvanized forming beam, zinc content 80g/㎡, 160 width 5633mm length	Pieces	2.00
				galvanized forming beam, zinc content 80g/㎡, 160 wide and 2688mm long	Pieces	2.00
				Bottom beam angle steel flooding, 5633mm	Pieces	2.00
				Bottom beam angle steel flooding, 2688mm	Pieces	2.00
				Galvanized C120*2.0mm galvanized cross brace, zinc content 80g/㎡	Pieces	5.00
				Galvanized square pipe 501001.2mm galvanized cross brace, galvanized content 80g/㎡	Pieces	4.00
				One piece of flood tank, 5633mm	Pieces	2.00
				One piece of flashing sink, 2688mm	Pieces	2.00
		Upright	galvanized column, zinc content 80g/㎡ 210 wide, 150 wide 2520mm	Pieces	4.00
				Connector 8.0mm, zinc plating content 80g/㎡	Pieces	8.00
				L-shaped column reinforcement	Pieces	8.00
		Galvanized corner pieces	upper corner piece, zinc plating content 80g/㎡ 210150210mm	Pieces	4.00
		Galvanized corner pieces		lower corner pieces, zinc plating content 80g/㎡ 210150160mm	Pieces	4.00
		Single tile capping	color steel single tile, 360 degree occlusion, special waterproof method	set	1.00
		Moisture-proof	Moisture-proof film, PE resin film 1.0mm	set	1.00
		75 glass wool	75mm glass wool thermal insulation quilt + tin foil paper, 14kg/m³	set	1.00
		colour	Baking paint (electrostatic spraying)	set	1.00
		bolt	Hexagon socket (galvanized)	Pieces	48.00
Downspouts	Downspouts	50 downpipe	Pieces	4.00
Ceiling tiles	Ceiling tiles	831 colour steel integrated ceiling board, laminated	set	1.00
Ground	Cement fiberboard	18mm thick, 1177*2820mm	Pieces	5.00
Floor decoration	Plastic flooring	1.6mm, anti-wear and non-slip plastic	set	1.00
Gate	High-grade steel door	840*2035mm. (1150 type wall panel)	set	1.00
window	Plastic steel security window	1130*1130 Double glass double push (1150 type wall panel)	set	2.00
Auxiliary material	Auxiliary material	Screws, sealant, internal box connections.	set	1.00
Wall panel	1150 type wall panel	75mm rock wool composite board, double-sided iron sheet 0.35/0.35mm, bulk density 50kg/m³ single-sided orange peel pattern double-sided film		1.00

Raw materials

We follow strict procedures to select raw material suppliers.

Material measurement

Each of our products accessories in strict accordance with customer requirements for the production of specifications of the size.

Domestic projects in China - Tianjin And Hubei project

We have a variety of projects in different provinces and cities in China, which has accumulated a lot of valuable project experience for us, so that we can quickly design the project design drawings needed by customers to meet their personalized needs.

Global market -- Nepal Project Department

A large number of global orders enable us to accumulate a large number of foreign construction experience, to provide strong support for the globalization of our products. We sincerely provide quality products to every global customer.

Installation Instructions

Click on the image below to ask for a video installation video.

Company Profile

CCCC Tianjin Dredging (Hainan) Industry Co., Ltd

CCCC Tianjin Dredging (Hainan) Industry Co., Ltd is a wholly owned subsidiary of CCCC group (China Communications Construction Company), which is the Fortune 500 companies. The company was established in 2005 and is located in Binhai New District, Tianjin, near the Tianjin Port of China. We currently have branches or offices in more than 150 countries and regions such as the United States, Australia, Japan, Pakistan, and Singapore. Products have been successfully sold to Asia, Australia, Europe, North America, Southeast Asia, the Middle East, Africa, South America, Japan, Hong Kong, Singapore and other countries and regions.

Product advantages

Our new integrated houses are widely used in residences, engineering offices, resort hotels, integrated commercial facilities, etc. The building quality, environmental protection, energy saving, sound insulation, waterproof and other indicators of all products meet the requirements of developed countries. For example, the products can resist magnitude 10 hurricanes and magnitude 8 earthquakes.

SGS CERTIFICATION VIDEO

Because professional, so trust

Manufacturing Technique

Factory equipment

We have a variety of industry leading manufacturing machinery and equipment, such as: cold bending type production line, robot welding platform, steel sheet sprocket machine.

Exhibition

Customer Photos

Certifications

Certificate showing

We have safety production License, occupational health and safety management System certification, hazardous chemicals operating license, ISO 9001 certification, and SGS certification.

Why Choose Us

1 .Are you a factory or a trader?

We are a factory located in Tianjin, China, and have our own professional R&D and design team.

2. Delivery time?

The normal order delivery time is 2-30 days after receiving the deposit.

The delivery time for large orders should be confirmed with the order management department.

3. What are your payment terms?

30% deposit is paid in advance, and the balance is paid before shipment; it can be negotiated according to specific projects.

4. Is it difficult to construct prefab houses?

Easy to install, installation videos and guide books are sent to you to show how to install quickly. Or we can send an engineer or installation team to the construction site.

5. Do you provide on-site installation services?

We provide installation services for large projects. We are one of the largest engineering contractors in China and have construction projects all over the world. We will arrange installation services for the project team closest to you. Installation fee standard: According to the project, we will give you a quotation, and we will charge travel expenses, accommodation fees, translation fees, and ensure the health and safety of employees.

6. How do you guarantee the quality of the product?

Quality first, we can send you a video of the production process, 100% strict quality inspection before delivery.

7. How can I get a quotation for the project?

If you have drawings, we can quote accordingly.

If you have no design, we will design some drawings for your confirmation, and then quote.

8. What is your supply capacity?

We supply more than 160,000 standard container houses every month.

9. Can you help buy equipment and install it in it?

If needed, we can help purchase some electrical appliances, such as air conditioners, refrigerators, dishwashers, ovens, etc., and package them in the container ship together with the container house.

10. How to get a quick quote?

You tell us the type, size, quantity, roof, wall, floor and other components of the container house, and we will check and quote you quickly. For detachable container houses and portable toilets, we can give you the price within 10 minutes after receiving your specifications.
